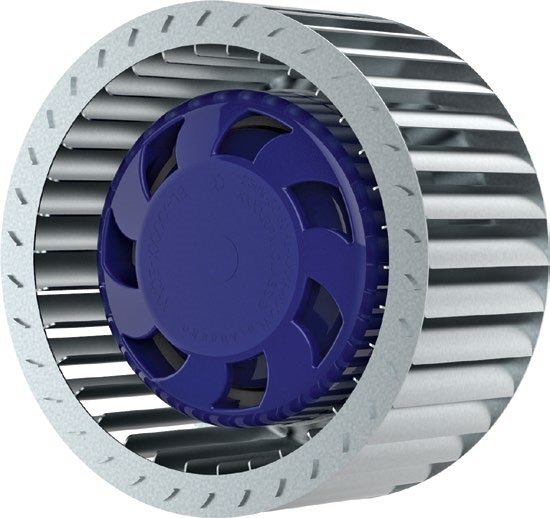

BC-F97A-EC-00
- Impeller material: Galvanized steel
- Direction of rotation: Clockwise, seen on rotor
- Speed control: 0-10V DC / PWM
- Degree of protection: IP55
- Insulation class: B
- Operation mode: Continuous duty (S1)
- Bearing type: Ball bearings
- Motor protection: Self-resetting TOP wired internally
Characteristics
Impeller size [mm]
97
Motor Type
EC
Motor model
MEC3C-59-55-02
Motor size
59
Phase
1~
Nominal Voltage [VAC]
120
Nominal voltage range [VAC]
92~138
Frequency [Hz]
50/60
Power consumption [W]
35
Сurrent draw [A]
0.5
Speed [RPM]
3000
Air Flow [m³/h]
218
Pressure [Pa]
275
Sound pressure level [dB(A)]
60
Min. ambient temperature [°С]
-25
Max. ambient temperature [°С]
+60
